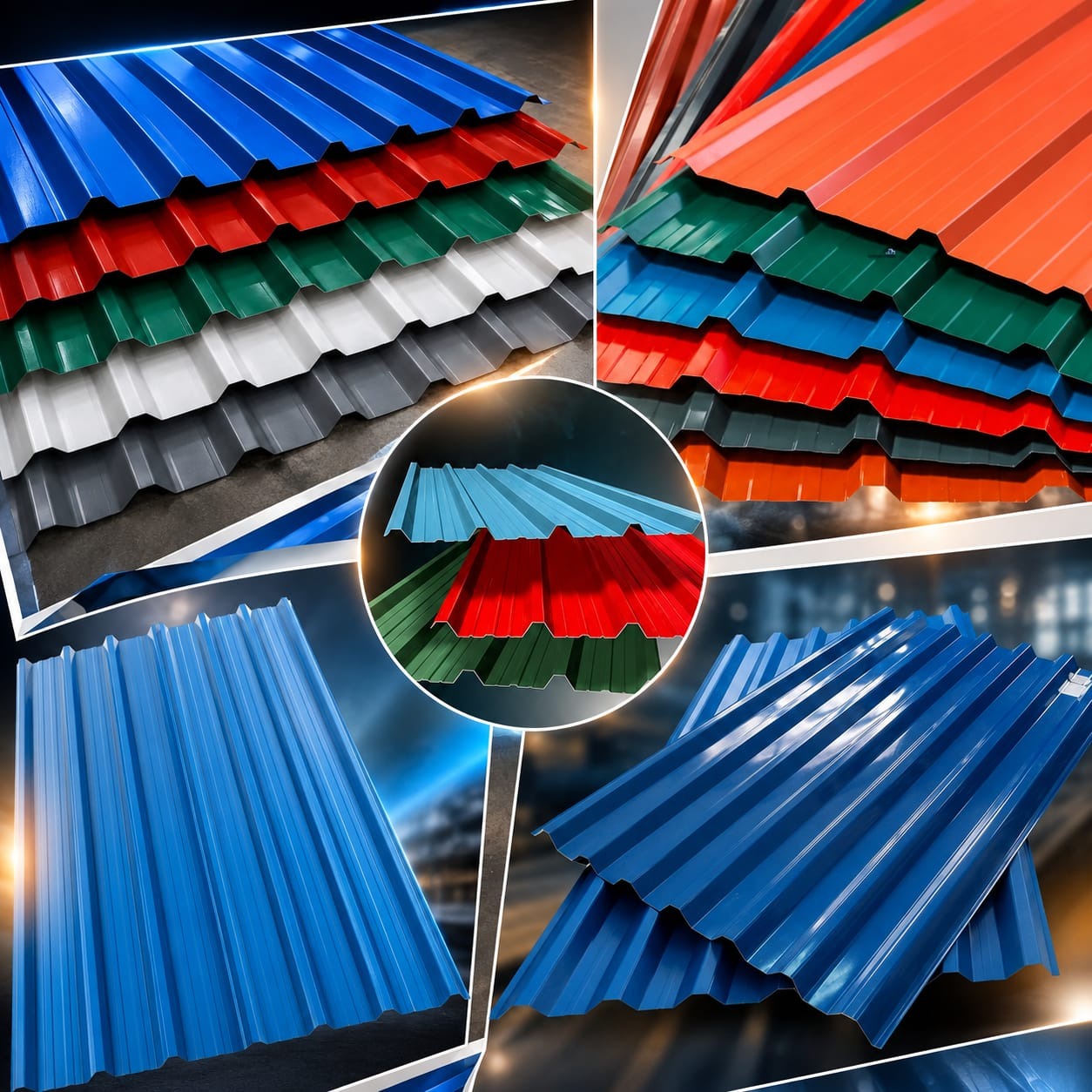

What is a Color Coated Profile Sheet?
A Color Coated Profile Sheet is a pre-painted, factory-finished metal roofing or wall-cladding sheet made from high-quality steel that is coated with protective metallic layers and a colored paint system. It combines the strength of steel, corrosion protection, attractive colors, and weather resistance in one roofing solution. These sheets are widely used for industrial buildings, warehouses, factories, commercial buildings, agricultural structures, residential roofs, sheds, canopies, and wall cladding.
Construction of a Color Coated Profile Sheet
A typical color-coated sheet consists of several layers:
Steel Base → Metallic Coating → Pretreatment → Primer → Top Color Coating → Protective Finish
• Steel Base: Provides structural strength and durability.
• Metallic Coating: Usually zinc or an aluminium-zinc alloy, helping protect the steel against corrosion.
• Pretreatment Layer: Improves adhesion between the metal surface and paint.
• Primer: Provides additional corrosion protection and improves paint durability.
• Top Coat: Gives the sheet its desired color, appearance, and weather resistance.
• Protective Finish: Helps protect the painted surface during handling and exposure.
Advantages Over Ordinary Roofing Sheets
A color-coated profile sheet offers a combination of functionality and aesthetics. The pre-painted surface eliminates the need for painting the sheet after installation and provides a consistent factory-applied finish.
It can also be easier to maintain the appearance of a building because the coating system provides protection in addition to the metallic coating underneath.
Color Coated vs GI/GC Sheet
Feature Color Coated Profile Sheet GI/GC Sheet
Appearance Colored finish Metallic/galvanized finish
Paint coating Yes Generally no
Corrosion protection Metallic + paint system Primarily metallic coating
Aesthetic options Many colors Limited
Maintenance Generally low Low, depending on environment
Application Roofing & cladding Roofing & general applications
Custom appearance Excellent Limited
Important Quality Factors
When purchasing a color-coated profile sheet, don't judge quality only by thickness and color. Important factors include:
• Steel grade
• Actual/base metal thickness
• Metallic coating quality
• Paint/coating type
• Coating thickness
• Paint adhesion
• UV resistance
• Corrosion resistance
• Profile design
• Dimensional accuracy
• Manufacturer quality
• Warranty and testing standards
Also, 0.50 mm from one specification is not necessarily equivalent to 0.50 mm from another if the quoted thickness refers to different measurement conventions. It is useful to confirm whether the supplier is specifying BMT (base metal thickness) or total coated thickness.
A Color Coated Profile Sheet is a pre-painted, factory-finished metal roofing or wall-cladding sheet made from high-quality steel that is coated with protective metallic layers and a colored paint system. It combines the strength of steel, corrosion protection, attractive colors, and weather resistance in one roofing solution. These sheets are widely used for industrial buildings, warehouses, factories, commercial buildings, agricultural structures, residential roofs, sheds, canopies, and wall cladding.
Construction of a Color Coated Profile Sheet
A typical color-coated sheet consists of several layers:
Steel Base → Metallic Coating → Pretreatment → Primer → Top Color Coating → Protective Finish
• Steel Base: Provides structural strength and durability.
• Metallic Coating: Usually zinc or an aluminium-zinc alloy, helping protect the steel against corrosion.
• Pretreatment Layer: Improves adhesion between the metal surface and paint.
• Primer: Provides additional corrosion protection and improves paint durability.
• Top Coat: Gives the sheet its desired color, appearance, and weather resistance.
• Protective Finish: Helps protect the painted surface during handling and exposure.
Advantages Over Ordinary Roofing Sheets
A color-coated profile sheet offers a combination of functionality and aesthetics. The pre-painted surface eliminates the need for painting the sheet after installation and provides a consistent factory-applied finish.
It can also be easier to maintain the appearance of a building because the coating system provides protection in addition to the metallic coating underneath.
Color Coated vs GI/GC Sheet
Feature Color Coated Profile Sheet GI/GC Sheet
Appearance Colored finish Metallic/galvanized finish
Paint coating Yes Generally no
Corrosion protection Metallic + paint system Primarily metallic coating
Aesthetic options Many colors Limited
Maintenance Generally low Low, depending on environment
Application Roofing & cladding Roofing & general applications
Custom appearance Excellent Limited
Important Quality Factors
When purchasing a color-coated profile sheet, don't judge quality only by thickness and color. Important factors include:
• Steel grade
• Actual/base metal thickness
• Metallic coating quality
• Paint/coating type
• Coating thickness
• Paint adhesion
• UV resistance
• Corrosion resistance
• Profile design
• Dimensional accuracy
• Manufacturer quality
• Warranty and testing standards
Also, 0.50 mm from one specification is not necessarily equivalent to 0.50 mm from another if the quoted thickness refers to different measurement conventions. It is useful to confirm whether the supplier is specifying BMT (base metal thickness) or total coated thickness.
